Thrislington Toilet Cubicle - Polo
Value engineered perfection. Most cost effective cubicle still has the standard Thrislington features that other cubicles in its price range can only dream about.

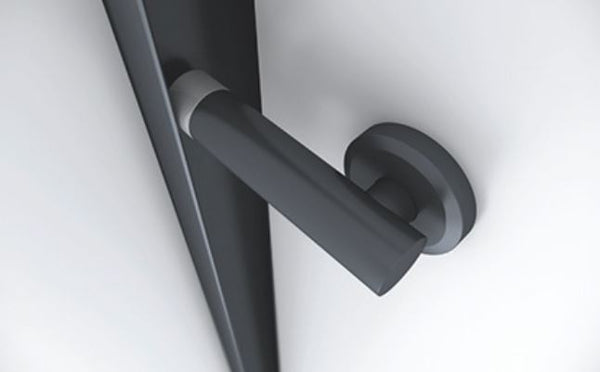

Lock
Anti-fingertrap. Machined painted aluminium lock locates into post. Emergency release.
Foot
Rise and fall self-closing door mechanism located in foot. Pivoted door. Standard height of 2000mm with 150mm floor gap. Available in full height version up to 2400mm with 28mm floor gap.
Fixings
Visible full powder coated aluminium frame. Powder coated aluminium fittings.
Bespoke
10 year guarantee. Bespoke design service available.
Compact Grade Laminate
Multiple layers of resinimpregnated high quality kraft papers.
Options:Compact Grade Laminate, High Pressure Laminate, Extensive range of colours, Wide range of suppliers, Colour match on request, Wood grains, Digital prints.
Specification:Overall cubicle height 2000mm with 150mm floor clearance. Full height version available up to 2400mm with a 28mm floor gap.
Framework:Full powder coated aluminium frame in specified finish, including extruded aluminium headrail and vertical posts. Lock locates directly into vertical closing post, including buffers.
Door:19mm finished thickness consisting of 17mm moisture resistant chipboard core, faced with High Pressure Laminate and edged all round with 2mm PVC/ABS tape to match framework finish. Extruded through-fixed aluminium brackets allow the door to pivot between aluminium headrail and floor fixed foot. Foot incorporates a rise and fall closing mechanism and includes height adjustment. Complete with anti-finger trap clearance on pivot side of door.
Divider:19mm finished thickness consisting of 17mm moisture resistant chipboard core, faced with High Pressure Laminate and finished to all visible edges with 2mm PVC/ABS tape to match framework finish. Supported 150mm from the floor by a powder coated aluminium foot, with height adjustment.
Fittings:Painted aluminium lock, fixed through the door to the face plate for added strength. Sacrificial hard nylon shear tip to the lock finger, which locates directly into the vertical closing post. Complete with emergency release facility. Divider fixed to back wall using extruded powder coated aluminium brackets secured using through fixings. Powder coated aluminium coat hook supplied as standard.
High Pressure Laminate
Multiple layers of resinimpregnated high quality kraft papers.
Options:Compact Grade Laminate, High Pressure Laminate, Extensive range of colours, Wide range of suppliers, Colour match on request, Wood grains, Digital prints.
Specification:Overall cubicle height 2000mm with 150mm floor clearance. Full height version available up to 2400mm with a 28mm floor gap.
Framework:Full powder coated aluminium frame in specified finish, including extruded aluminium headrail and vertical posts. Lock locates directly into vertical closing post, including buffers.
Door:19mm finished thickness consisting of 17mm moisture resistant chipboard core, faced with High Pressure Laminate and edged all round with 2mm PVC/ABS tape to match framework finish. Extruded through-fixed aluminium brackets allow the door to pivot between aluminium headrail and floor fixed foot. Foot incorporates a rise and fall closing mechanism and includes height adjustment. Complete with anti-finger trap clearance on pivot side of door.
Divider:19mm finished thickness consisting of 17mm moisture resistant chipboard core, faced with high pressure laminate and finished to all visible edges with 2mm PVC/ABS tape to match framework finish. Supported 150mm from the floor by a powder coated aluminium foot, with height adjustment.
Fittings:Painted aluminium lock, fixed through the door to the face plate for added strength. Sacrificial hard nylon shear tip to the lock finger, which locates directly into the vertical closing post. Complete with emergency release facility. Divider fixed to back wall using extruded powder coated aluminium brackets secured using through fixings. Powder coated aluminium coat hook supplied as standard.
Discover more commercial bathroom cubicles from Thrislington Cubicles
