Thrislington Locker - Fusion
Hard wearing locker system is designed for both wet and dry areas and is fully DDA compliant. Its intelligent anti-vandal features not only make it tough, but it also looks the part.
Fixings
Range of locking options. Designed for wet and humid conditions. Can work with differing plinth options.
Fitting
Aluminium body. Standard height of 1800mm. Range of locking options.
Configurations
Various configurations, available, including z-lockers. Variable depths and widths.
Glass
Toughened back painted glass.
Options:Low-Iron, Clear, Range of standard colours, RAL match on request.
Specification:Fully assembled unit with aluminium locker body and door, supplied in a variety of height, width and depth combinations. Multiple lock options available.
Anodised aluminium studs on the outer face of the door, through-fixed into the continuous hinges for added strength, using stainless steel screws. As a standard, lockers are supplied with either hasp & clasp or cam locks. Alternatives are coin operated, card operated or digital locks. Cam, coin operated and card operated locks are supplied with two keys and a tag, which can be numbered. Flexible PVC straps can be supplied. With the exception of digital locks, an anodised aluminium faceplate is provided, which also can be numbered.
Application:Suitable for use in both wet and dry areas and can be situated in a variety of layouts, such as to a back wall, as a free-standing unit, back to back in an island configuration, or fitted into a recess.
Door:10mm back painted toughened glass, polished to all edges.

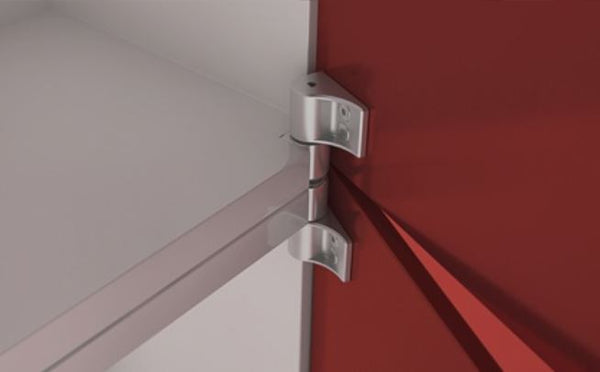

Body:1mm mill finished aluminium sheet body with a radius to the internal corners to reduce dirt traps and pre-drilled holes for site fixing. Continuous spring loaded hinges locate into extruded aluminium profiles. Where layout results in an exposed end, a return panel can be supplied in a finish to match the doors.
Wood Veneer
Real wood veneer backed with composite material to enable fabrication.
Options:Matt, Silk, Relief, Grained, Unfinished, Optional cross grain.
Specification:Fully assembled unit with aluminium locker body and door, supplied in a variety of height, width and depth combinations. Multiple lock options available.
Anodised aluminium studs on the outer face of the door, through-fixed into the continuous hinges for added strength, using stainless steel screws. As a standard, lockers are supplied with either hasp & clasp or cam locks. Alternatives are coin operated, card operated or digital locks. Cam, coin operated and card operated locks are supplied with two keys and a tag, which can be numbered. Flexible PVC straps can be supplied. With the exception of digital locks, an anodised aluminium faceplate is provided, which also can be numbered.
Application:Suitable for use in both wet and dry areas and can be situated in a variety of layouts, such as to a back wall, as a free-standing unit, back to back in an island configuration, or fitted into a recess.
Door:11mm finished thickness, consisting of 9mm plywood core, edged all round and then faced both sides in wood veneer.
Body:1mm mill finished aluminium sheet body with a radius to the internal corners to reduce dirt traps and pre-drilled holes for site fixing. Continuous spring loaded hinges locate into extruded aluminium profiles. Where layout results in an exposed end, a return panel can be supplied in a finish to match the doors.
Aluminium
Aluminium sheet bonded to MDF core, edged in metallic laminate.
Options:Satin anodised aluminium, Powder coated aluminium.
Specification:Fully assembled unit with aluminium locker body and door, supplied in a variety of height, width and depth combinations. Multiple lock options available.
Anodised aluminium studs on the outer face of the door, through-fixed into the continuous hinges for added strength, using stainless steel screws. As a standard, lockers are supplied with either hasp & clasp or cam locks. Alternatives are coin operated, card operated or digital locks. Cam, coin operated and card operated locks are supplied with two keys and a tag, which can be numbered. Flexible PVC straps can be supplied. With the exception of digital locks, an anodised aluminium faceplate is provided, which also can be numbered.
Application:Suitable for use in both wet and dry areas and can be situated in a variety of layouts, such as to a back wall, as a free-standing unit, back to back in an island configuration, or fitted into a recess.
Door:11mm finished thickness, consisting of 9mm plywood core, edged all round in a matching laminate and then faced both sides in sheet aluminium
Body:1mm mill finished aluminium sheet body with a radius to the internal corners to reduce dirt traps and pre-drilled holes for site fixing. Continuous spring loaded hinges locate into extruded aluminium profiles. Where layout results in an exposed end, a return panel can be supplied in a finish to match the doors.
Compact Grade Laminate
Options:Compact Grade Laminate, Extensive range of colours, Colour match on request, Digital prints, Wood grains.
Specification:Fully assembled unit with aluminium locker body and door, supplied in a variety of height, width and depth combinations. Multiple lock options available.
Anodised aluminium studs on the outer face of the door, through-fixed into the continuous hinges for added strength, using stainless steel screws. As a standard, lockers are supplied with either hasp & clasp or cam locks. Alternatives are coin operated, card operated or digital locks. Cam, coin operated and card operated locks are supplied with two keys and a tag, which can be numbered. Flexible PVC straps can be supplied. With the exception of digital locks, an anodised aluminium faceplate is provided, which also can be numbered.
Application:Suitable for use in both wet and dry areas and can be situated in a variety of layouts, such as to a back wall, as a free-standing unit, back to back in an island configuration, or fitted into a recess.
Door:12mm Compact Grade Laminate, polished to all edges.
Body:1mm mill finished aluminium sheet body with a radius to the internal corners to reduce dirt traps and pre-drilled holes for site fixing. Continuous spring loaded hinges locate into extruded aluminium profiles. Where layout results in an exposed end, a return panel can be supplied in a finish to match the doors.
