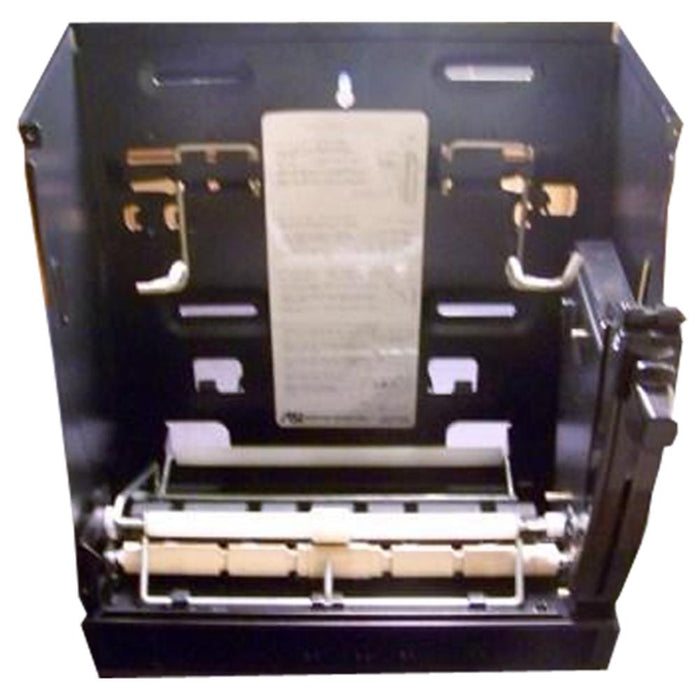

ASI 8370 Paper Towel Dispenser Mechanism Manual Lever Operated
Manual Lever Operated Towel Dispenser Mechanism shall hold one 8" or 9" wide x 8" diameter (203 or 229 x Ø203) standard towel roll up to 800 ft. (244m) long and one 8" or 9" wide (203 or 229) stub roll up to 4" diameter (Ø102). Unit shall be comprised of a baked enamel coated steel housing and mechanism base plate with internal plated steel, plastic, rubber, wood and stainless steel parts. A lever operated drive mechanism shall be supplied to dispense roll towels in one (1) of three (3) preset lengths chosen by owner. An installation label shall be provided permanently affixed to inside rear panel to illustrate correct paper loading, length preset pin selection and stub roll transfer. Unit is designed for installation into lever manual paper towel dispenser cabinets manufactured by American Specialties, Inc.
Features:
- Towels are fed by lever action until supply is depleted
- Unit is designed for installation into lever manual paper towel dispenser cabinets
Specifications:
| Brand |
ASI |
| Product Type | Paper Towel Dispenser Mechanism |
| Paper Towel Type | Standard Towel Roll |
| Dispenser Capacity | One 8"/9" Roll |
| Manufacturer Part Number | 8370 |
| Dispenser Type | Manual |
| Material | Steel |
| Width | 12.12" |
| Depth | 9.37" |
| Height | 14.87" |
| Certification and Listings | ADA |
