ASI Accurate Toilet Partitions - Stainless Steel

Stainless steel toilet partitions provide a modern look and retain their beauty indefinitely. By adding a textured finish, increased resistance to vandalism can be achieved. Available in all four mounting styles.

Options:

• Stainless Steel Stirrup Brackets
• Stainless Steel Door Hardware
• Wood Core
• Continuous Anodized Aluminum and Stainless Steel Brackets
• Continuous Piano Hinges
• Ultimate Privacy

Styles

This economical and sturdy mounting style installs just about anywhere. An anodized aluminum anti-grip head rail secures partitions firmly to the walls.

Simplified construction permits ease of installation anywhere. For concrete floors only: 2" minimum penetration into floor required.

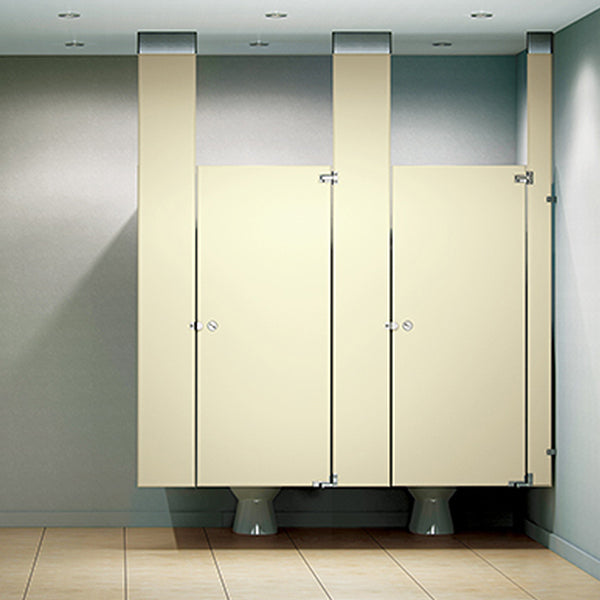

When used together with wall-hung fixtures, the entire floor is accessible for efficient cleaning. Structural steel ceiling supports are necessary to assure proper installation.

This mounting style is extremely stable and durable as pilasters are anchored into both the concrete floor and the structural ceiling support.

Ultimate Privacy:

ASI Accurate Partitions, an industry leader through innovation offers its Ultimate Privacy design. Doors and panels up to 72″, plus our No-Sight System guarantee privacy. You don’t need to build private rooms to achieve Ultimate Privacy.

Hardware

Corners of panels, pilasters, and doors are welded to each other and to the adjacent face sheets.

Internal part of the door. A pin goes through door and bracket for three-point bearing and operates in a nylon bushing in upper hinge bracket.

Gravity-positioning hinge provides safe, durable, and maintenance free support.

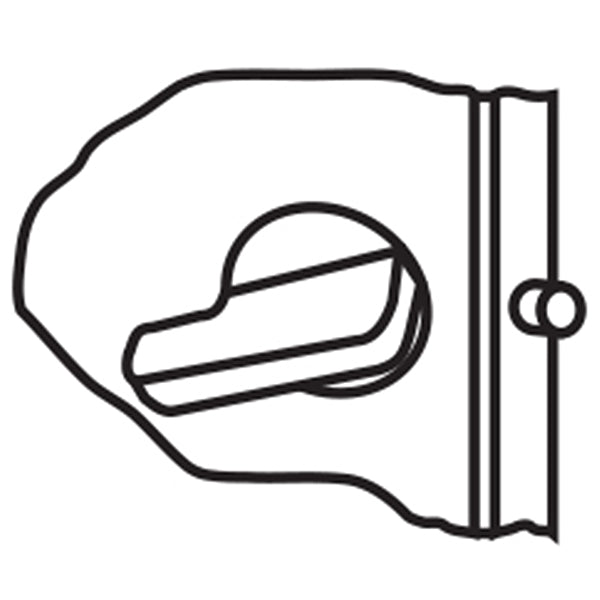

With emergency access and ADA level handle.

Honeycomb:

Made of cellular honeycomb. This type of core provides strong construction and sound attenuation.

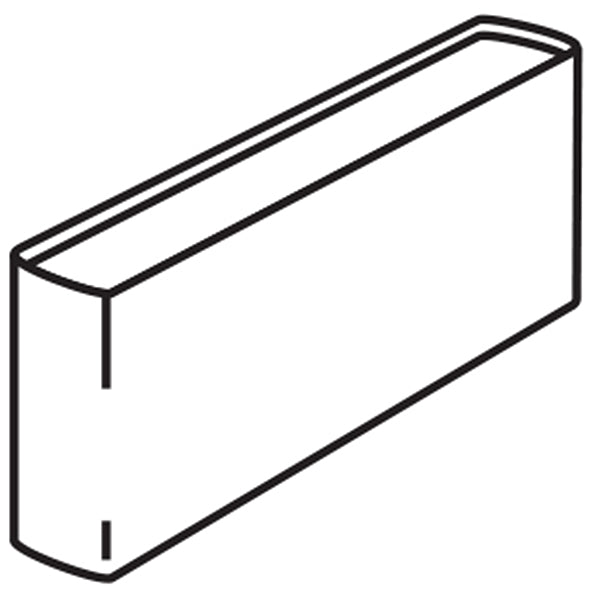

One-piece stainless steel, type 304, with #4 satin finish trim shoes are hemmed top and bottom for rigidity and sleek appearance.

Special driver installs fasteners which virtually eliminates unauthorized removal and ensures easy installation.

Pilaster adjustments, with floor­mounted jack­‑leveling device is standard on floor anchored/ overhead braced pilasters.

Continuous stop and hinge side filler eliminate sightlines into the compartment.

Technical Files:

• ASI Accurate Partitions _Installation_Stainless_Steel_Floor-Mounted

• ASI Accurate Partitions_Installation_Stainless-Steel_Overhead-Braced

• ASI Accurate Partitions_Installation_Stainless_Steel_Ceiling-Hung

• ASI Accurate Partitions-Care-Maintenance-Stainless-Steel

• ASI-Accurate-Partitions-Warranty
